Network Visibility
Steering Network Traffic into Digital Evidence
IP Jackfield™ is the industry’s first true virtual patch panel built for the ST 2110 era. It transforms network observability by bridging the gap between high-level broadcast control and deep-packet visibility. IP Jackfield™ leverages the Arista DANZ Monitoring Fabric (DMF) to go beyond simple routing, allowing engineers to visualize all media flows, verify their health, and instantly create an analysis “patch” to any destination tool. Whether you’re commissioning a new facility, troubleshooting an on-air issue, or performing daily quality control, IP Jackfield™ helps you move from problem to resolution instantly. It’s not just about seeing traffic; it’s about understanding it.

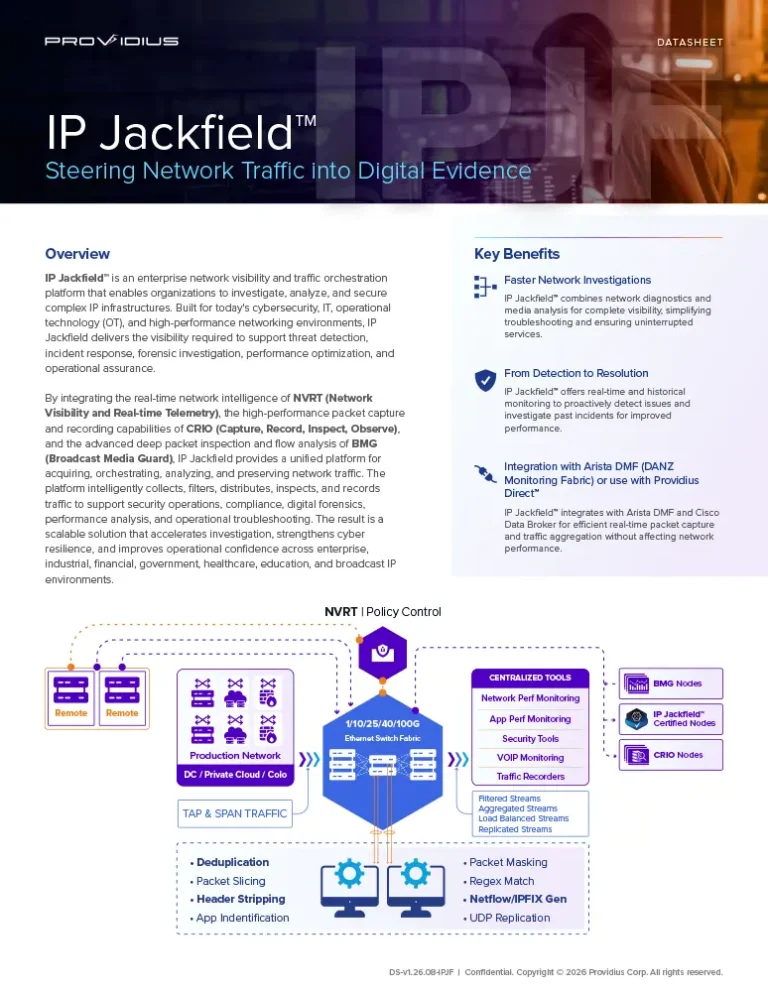

Discover how IP Jackfield™ can transform your workflow by exploring the complete datasheet.
IP media networks can function like a “black box” where visibility into every stream is missing. Knowing if a media flow is healthy before it’s needed for production is a significant challenge that traditional tools cannot solve
Pinpointing the root cause of an issue, such as packet loss, is difficult and time-consuming in large-scale IP networks. Engineers need a way to quickly access any stream for deep inspection without complex CLI or manual SPAN port configuration.
Broadcast controllers manage on-air routing but are blind to the underlying network health. This creates a disconnect between the control layer and the visibility layer, forcing engineers to use multiple, non-integrated tools to diagnose a single problem.
Reduce Mean Time to Resolution for media-related issues.
An essential, out-of-band QC and diagnostic layer, that integrates with existing infrastructure.
Seamlessly deliver traffic to an analyzer for deep-packet inspection and root-cause analysis.
Get a real-time discovery and inventory of all unique media flows on the network.
The IP Jackfield is well-suited for simple networks with only a small number of switches, as it provides a centralized and flexible way to monitor and route traffic without requiring complex infrastructure. In such environments, it can aggregate feeds directly from each switch port, enabling operators to patch, redirect, or replicate flows on demand.
The IP Jackfield is equally effective in large enterprise-scale networks, where the volume of traffic, diversity of services, and number of switches are far greater. In these deployments, it serves as a dynamic traffic aggregation and distribution hub, enabling operators to route and replicate flows from thousands of switch ports without introducing bottlenecks.
The IP Jackfield provides a simple, safe, out-of-band workflow that abstracts the complexity of manual CLI configurations and SPAN port management. The process is orchestrated in three logical steps:
The Providius NVRT performs real-time discovery of all multicast traffic on the network using gNMI to collect Multicast Forwarding Information Base (MFIB) tables from each Arista switch, building a comprehensive and live inventory of all available media flows
When an operator selects a flow to analyze, the NVRT initiates a policy with the DMF Controller to route traffic through the Arista TAP AGG network, while creating a filtered monitor session on the production switch to select the targeted flow.
The workflow completes as Providius NVRT automatically provisions the designated analysis engine, ensuring it’s ready to receive and process the media flow for immediate inspection.
An operator sees a glitch on-air. Using IP Jackfield, they can instantly patch a copy of that specific flow to a waveform monitor and packet analyzer to find the root cause in seconds.
During a new facility build, engineers can use IP Jackfield to systematically verify the health and standards-compliance of every single video and audio stream from every source before the system goes live.
Quickly patch and send a copy of a remote feed arriving at the broadcast center to a local analyzer to validate its integrity and troubleshoot any issues with the contribution link.
Manually or using Providius Flow Cycling, rotate through sources, patching them to a bank of analyzers to proactively check for degrading conditions before they impact the live production.
Our solutions deliver comprehensive, real-time visibility into network traffic, system health, and application workflows, enabling precise fault detection and rapid issue resolution before they impact operations.
With end-to-end observability and actionable insights, Providius empowers your team to maintain peak performance, ensure stability, and meet even the most demanding operational requirements.
